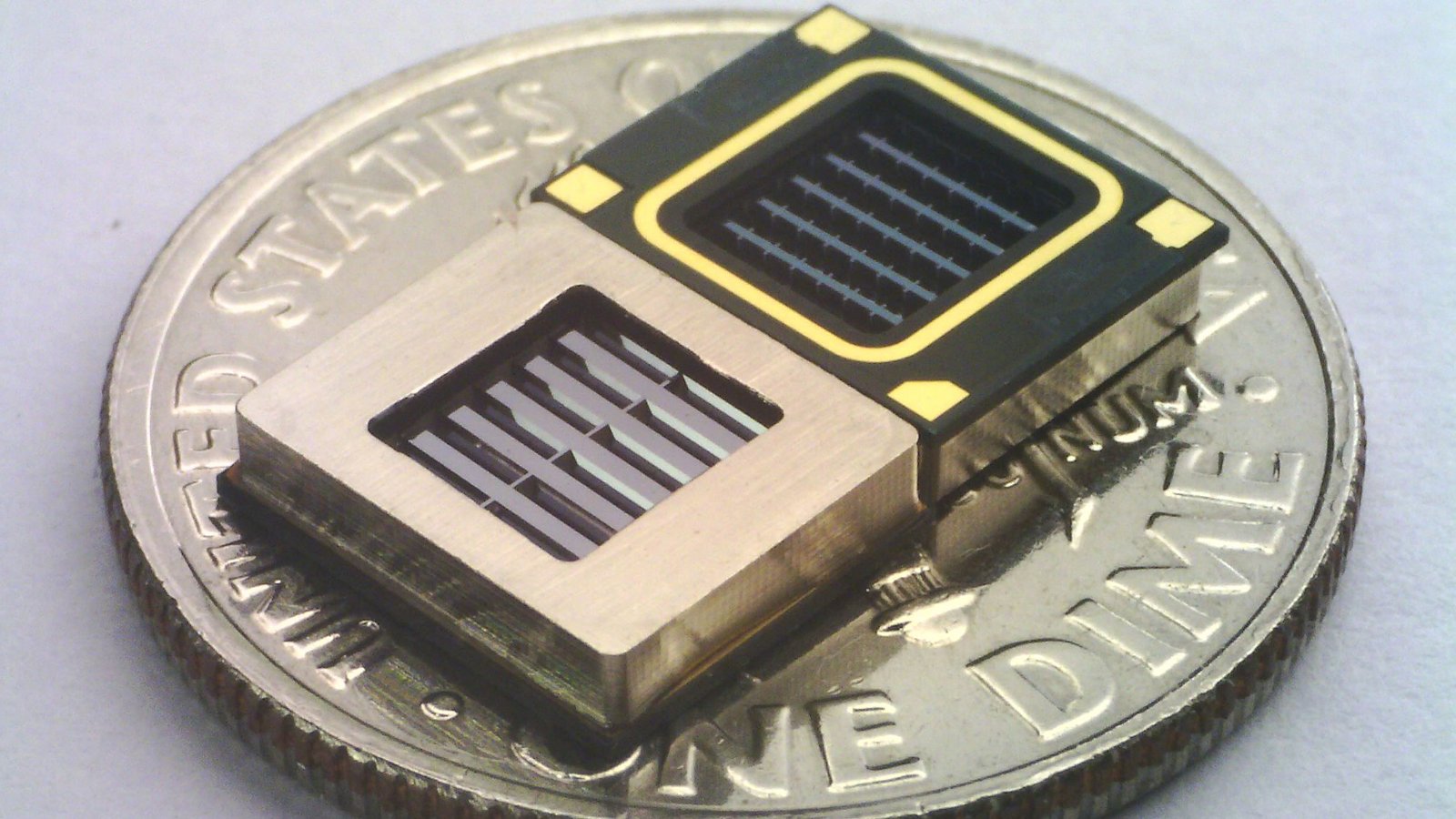

The small Cypress drivers can match on a dime and exchange the shifting coil dynamic drivers present in earbuds.
TL;DR
- The MEMS speaker design makes use of ultrasound and amplitude modulation to supply sound at audible frequencies.
- xMEMS claims larger effectivity, higher bass and extra dependable manufacturing yields.
- You received’t see these till 2025 on the earliest.
At the moment, xMEMS introduced the manufacturing of its newest MEMS transducer for wi-fi earbuds, the Cypress MEMS speaker. This launch is notable as a result of it’s a dramatic departure from the normal speaker design, with efficiency, price, and weight boasts to match.
Based on xMEMS, the Cypress’ speaker unit consists of:
…a modulator to generate an amplitude-modulated ultrasonic wave (service) that faithfully follows the amplitude of the supposed audio sign; and a demodulator to synchronously demodulate the ultrasonic wave, transferring the acoustic vitality right down to the baseband, producing the supposed audible sound consequently. — xMEMS Press launch
There’s no magnet (decreasing mass), and the speaker’s means to maneuver shortly is far higher than that of a standard speaker cone. On high of this, xMEMS claims that the design additionally affords near-zero section shift, and may assist earbuds obtain higher outcomes with half to half consistency and channel matching.
Moreover, this speaker is designed to be soldered straight onto a circuit board, making meeting and manufacturing of earbuds that a lot simpler. As an alternative of matching wires to solder factors, a producer can simply reflow the speaker straight onto the board such as you would every other element. This might lower manufacturing prices and take away a standard breakage level (skinny wires).
There are a variety of merchandise with older MEMS audio system about to hit the market later this 12 months, however the Cypress marks an development even over these designs, as it could hit larger sound stress ranges on the lowest lows to beat design challenges with the true wi-fi design. Ought to the promise of the Cypress pan out, earbuds may use the brand new driver unit to cut back weight, measurement, and price.
A producer render of the xMEMS Cypress inside a fictional earbud.
Although the speaker will ultimately be utilized in widespread fashions of earphones, at the moment, the Cypress is simply within the prototype stage — and mass manufacturing will come as early as late 2024. Nevertheless, the expertise can be demonstrated at CES 2024 in Las Vegas, NV.
