Optical amplifiers have reworked optical communication expertise by eliminating the necessity for photoelectric and electro-optical conversions, enabling direct amplification of optical indicators. Their versatile functions and continuous developments contribute to creating high-speed, long-distance optical communication networks. This text overviews the significance of optical amplifiers and examines how they optimize sign power in photonics.

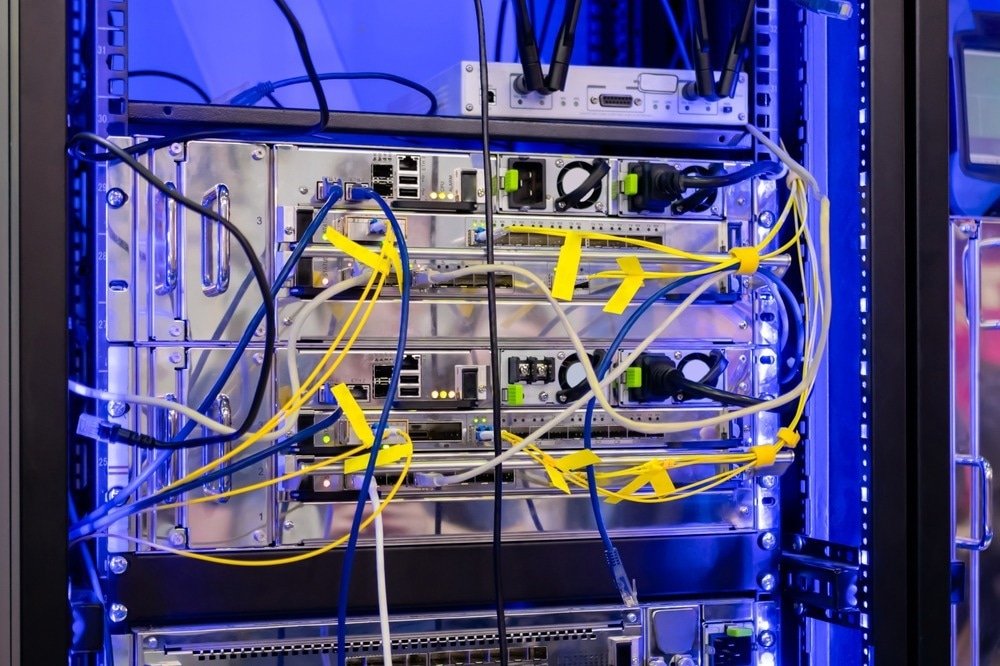

Picture Credit score: Zyabich/Shutterstock.com
Optical Amplifiers: An Overview
Optical amplifiers amplify enter sign gentle with out changing it to electrical indicators, making certain optical indicators’ environment friendly and direct transmission with out sign degradation. They make use of enter indicators as Gaussian beams in fiber or free area and use a acquire medium (electrically or optically pumped) to amplify the sign.
Optical amplifiers discover various functions in fiber communications, shopper electronics, energy methods, and drugs. For instance, they’re used as energy boosters in transmitters, bettering transmission energy, and as preamplifiers in receivers, enhancing sensitivity and lengthening transmission distances.
Optical amplifiers have revolutionized fiber communication by increasing bandwidth and capabilities, enabling high-speed, long-distance transmission. As well as, they excel in dense wavelength division multiplexing (DWDM) methods, enabling simultaneous amplification of a number of channels.
Optical amplifiers will be categorized into three principal classes: Erbium-doped fiber amplifiers, Semiconductor optical amplifiers, and Raman optical amplifiers. Every kind provides distinctive benefits and is employed in numerous functions inside optical communication methods.
The Significance of Sign Amplification in Photonics
Optical fiber transmission reveals minimal loss at wavelengths round 1,550 nm, with lower than 0.2 dB per km. Nonetheless, when the fiber size exceeds 10 km (relying on the character of the fiber), this loss turns into important and can’t be ignored.
Optical amplifiers assist overcome this subject by immediately amplifying the sunshine indicators with out changing them to electrical indicators. This eliminates the necessity for extra conversion items and permits for sooner transmission charges.
How Optical Amplifiers Improve Alerts?
The working of the optical amplifiers varies with the mechanisms used for amplification.
Erbium Doped Fiber Amplifiers’ Three-Vitality Degree System
The erbium-doped fiber amplifier (EDFA) is an optical amplifier that makes use of erbium-doped fiber to boost optical indicators. Its working precept relies on a three-energy stage system, the place erbium ions are excited by a pump laser and transition between completely different power states. This transition results in the emission of photons that amplify the optical sign.
The amplification course of in EDFA entails stimulated and spontaneous emission. Spontaneous emission ends in the emission of photons within the desired wavelength vary, nevertheless it additionally provides noise to the sign. Stimulated emission happens when an incident photon stimulates the emission of one other photon, ensuing within the amplification of the optical area.
EDFAs are generally utilized in submarine and terrestrial methods for amplification at numerous wavelengths, notably round 1550nm.
Raman Optical Amplifier
Raman optical amplifiers (ROAs) amplify optical indicators by way of stimulated Raman scattering (SRS). By introducing pump energy into the fiber carrying the sign, ROAs amplify the sign by inelastic collisions and stimulate the emission of extra sign photons.
In contrast to different fiber amplifiers, ROAs supply flexibility in deciding on the amplification band by adjusting the pump frequency, permitting for wider usable bandwidth in optical communication methods. As well as, they’ll prolong the amplification past the normal C- and L-bands into the S- and U-bands and past, making them priceless for long-haul transmission methods.
ROAs present broad amplification and will be optimized utilizing a number of pumps at completely different frequencies.
Semiconductor Optical Amplifiers
A semiconductor optical amplifier (SOA) is a compact system amplifying gentle indicators by stimulated emission. It eliminates the resonator construction of semiconductor lasers and permits exterior gentle to enter for amplification.
SOAs have an identical construction to semiconductor lasers, with a waveguide and a p-n junction. When a ahead bias is utilized to the p-n junction, minority provider injection happens, creating an inversion of provider inhabitants and producing optical acquire. By introducing an optical sign right into a waveguide inside a forward-biased SOA, enough injection present can set up circumstances the place stimulated emission dominates, leading to optical amplification.
SOAs supply cost-effective options and have decreased polarization dependency. Because of this, they’re changing EDFAs in knowledge facilities and have broader functions in optical communication.
Latest Analysis and Developments
Noise-Free Compact Optical Amplifier Revolutionizes Communication
Optical communication has enabled the transmission of knowledge over lengthy distances with minimal energy loss. Nonetheless, present optical amplifiers introduce extra noise that degrades the sign high quality. The Chalmers College of Expertise researchers have overcome this impediment with their modern resolution.
Of their examine printed in Science Advancesresearchers designed an optical amplifier that has the potential to revolutionize area and fiber communication. In contrast to earlier amplifiers, this new system provides distinctive efficiency, a compact measurement, and doesn’t introduce extra noise.
The optical amplifier relies on the Kerr impact, which amplifies gentle with out inflicting important extra noise. Whereas the precept has been demonstrated beforehand, this examine showcases the primary compact implementation. The brand new amplifier is built-in right into a tiny chip, just a few millimeters, making it a lot smaller and extra sensible than earlier cumbersome variations.
Because of their small measurement, these optical amplifiers can be utilized sparingly, lowering prices, and so they function in a steady wave mode, rising effectivity. These developments make the amplifier commercially interesting and open up new potentialities in quantum computer systems, sensor methods, and Earth monitoring from satellites.
Optical Parametric Amplifiers for The New Period of Photonics
Optical parametric amplifiers have emerged as a promising expertise for long-distance sign transmission in optical fibers. In contrast to different optical amplifiers, they depend on the nonlinear properties of optical fibers, offering broad-band acquire with out being restricted to particular transitions.
Nonetheless, parametric amplifiers battle with the weak Kerr nonlinearity of silica, necessitating excessive pump energy. Attaining continuous-wave operation on built-in photonic platforms has been a big problem.
Overcoming these obstacles, researchers led by Dr. Johann Riemensberger from EPFL designed a novel photonic chip-based traveling-wave amplifier. The outcomes are printed within the journal Nature.
Utilizing an ultralow-loss silicon nitride photonic built-in circuit, the researchers achieved important on-chip and fiber-to-fiber internet acquire within the telecommunication bands. Because of this, the researchers can optimize the waveguide dispersion to broaden the parametric acquire bandwidth past 200 nm.
The low absorption lack of silicon nitride allows attaining a most parametric acquire surpassing 70 dB with simply 750 mW of pump energy, surpassing the capabilities of even the best fiber-based amplifiers.
This development opens potentialities for extending optical communications, laser amplification, and LiDAR methods and facilitating numerous probing and sensing functions for classical and quantum indicators.
Future Outlooks
Optical amplifiers are anticipated to realize larger amplification effectivity, function over prolonged wavelength ranges, make use of superior pumping methods, discover nonlinear results for amplification, allow high-speed amplification, and incorporate superior sign processing capabilities.
These developments will improve the efficiency, power effectivity, and compactness of optical communication methods and different photonics functions.
