Beamforming microphones have grow to be way more frequent over the past a number of years and, usually, are among the many first decisions when contemplating microphones for assembly areas. When contemplating a beamforming array, there are a number of issues to be taken under consideration earlier than making a call.

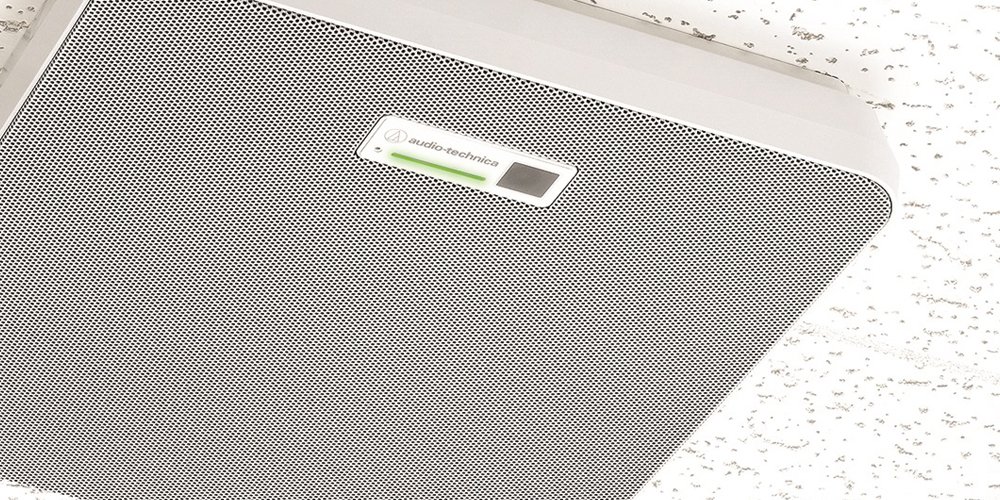

Right here, Mark Donovan, CTS-D, CTS-I, purposes engineering supervisor, skilled markets, Audio-Technica, gives a deep dive on the distinctive worth proposition that the ATND1061 beamforming ceiling array microphone gives.
Industrial Integrator: How can beamforming microphones just like the ATND1061 enhance assembly sound high quality?
Mark Donovan: In any microphone utility, whether or not it’s stay sound, studio, broadcast, or assembly areas, the power to precisely seize sound relies upon totally on the place the microphone is pointed and what the achieve stage settings are of these microphones.
Inside zones which can be assigned when establishing the ATND1061, the microphone is ready to calculate the talker location and preserve the middle of the beam on that talker. Your microphone beams will stay confined to zones that you simply outline, stopping the beam from transferring in the direction of an space you want to keep away from. The microphone can also be ready to make use of that location info to calculate distance and can fluctuate the achieve as a talker will get nearer to or farther from the microphone. This gives a clean quantity stage because the talker strikes inside the outlined zone. When there is no such thing as a talker inside the zone, the beam will go into an inactive state that reduces the extent by a person outlined quantity.
The zones may be assigned to as much as six totally different beams permitting devoted protection of as much as six simultaneous talkers. The primary zone kind is for the Protection Beam. This beam is used for common protection of an space. The remaining 5 beams are Precedence Beams and they’re used to outline areas which can be extra essential, such because the seat for the presiding officer of a gathering or an teacher in a classroom. By combining these beams, you possibly can guarantee essential people are picked up in Precedence Beams whereas others can nonetheless be picked up by the Protection Beam.
Industrial Integrator: How tough is the ATND1061 to arrange and function?
Mark Donovan: Out of the field, the ATND1061 comes with a single zone for the Protection Beam drawn over the complete 5-meter protection radius (10 meters or 32.8 ft in diameter). This zone is robotically routed to Dante output number one and may be routed to the DSP of your selection for processing merely utilizing Dante Controller.
If you happen to want to make the most of the Precedence Beams inside the microphone, you’ll merely want to hook up with the microphone by way of Audio-Technica’s Digital Microphone Supervisor software program and outline the dimensions and site of the pickup zones. Every of the six beams may be routed to particular person Dante outputs for exterior processing or you possibly can select to make use of the interior DSP of the ATND1061.
The interior DSP gives many crucial capabilities inside a single package deal, together with a gain-sharing computerized mixer, Computerized Achieve Management (AGC), Noise Cancellation (NC), and Acoustic Echo Cancellation (AEC). The settings for these DSP blocks are additionally accessed by way of the Digital Microphone Supervisor software program by way of a easy and intuitive GUI. Utilizing the interior DSP can eradicate the necessity for exterior DSPs in lots of purposes and doesn’t require in depth programming abilities.
Industrial Integrator: What are my choices if I don’t want to use or don’t have some other Dante gadgets within the system?
Mark Donovan: Together with the Dante enter and output choices, the ATND1061 additionally has analog I/O. The analog enter is used to feed a reference sign to the Acoustic Echo Cancellation (AEC) circuitry. The analog output comes from the automated mixer outputs, offering the sum of all beams on a single balanced audio line. These indicators may be linked to any gadget with analog I/O to bridge into your pc, corresponding to a {hardware} codec or a easy analog USB interface.
A community reference to Energy over Ethernet (PoE) will nonetheless be required to energy the microphone and to attach the Digital Microphone Supervisor software program for configuration.
Industrial Integrator: How can the ATND1061 assist mitigate noise?
Courtesy/ Audio-Technica
Mark Donovan: As talked about earlier than, your sound high quality relies upon totally on the place the microphone is pointed and what the achieve stage settings are of these microphones. That is additionally key to lowering the quantity of noise which will enter the audio chain.
The Voice Exercise Detection (VAD) algorithms constructed into the beamforming part of the ATND1061 do an incredible job of distinguishing noise from voice, however it’s attainable that the VAD can get fooled, relying in your settings. You’ll be able to modify the sensitivity of the VAD algorithm, however these settings are a tradeoff between response velocity and false set off discount.
Establishing the beam zones accurately is the vital first step in mitigating noise. When establishing a room, ensure you draw your zones in order that the beam gained’t be drawn in the direction of random noises that might idiot the VAD algorithms. You’ll be able to accomplish this by not drawing any zones over potential noise supply or by drawing an Exclusion Zone over a possible noise supply. Exclusion Zones inform the beamforming algorithms to not transfer in the direction of any sound inside them whatever the VAD algorithm outcomes.
For regular state noises corresponding to air handlers and projector followers, the ATND1061 has a Noise Cancellation (NC) processing block constructed into the blended output. This processing can present as much as 20dB of noise attenuation and may be very efficient in lowering regular state background noise.
For terribly difficult purposes, you aren’t confined to utilizing the instruments constructed into the microphone. You might have the power to route the uncooked beam output to exterior DSPs by way of Dante. These DSP’s can present extra superior processing corresponding to gated precedence mixing and superior noise discount.
Industrial Integrator: How can the ATND1061DAN be built-in with cameras?
Mark Donovan: Audio-Technica has thought-about the query from the very starting. Most beamforming microphones present their beam location knowledge and sign ranges inside these beams to exterior {hardware} and software program in order that that info can be utilized to find out if a digital camera preset ought to be recalled. These exterior software program or {hardware} gadgets then ship the suitable instructions to the cameras in a language the cameras can perceive.
The ATND1061 has this identical functionality however was designed with 15 digital camera zones that exist individually from the audio zones. This implies that you would be able to present location knowledge on 15 totally different zones with out affecting your rigorously tuned audio. This knowledge can then be captured by the identical third-party {hardware} and software program packages to manage cameras.
Just lately, Audio-Technica launched a brand new firmware replace for the ATND1061 that skips that intermediate step and permits to take the info from these 15 digital camera zones and talk straight with many Pan/Tilt/Zoom cameras out there in the marketplace right this moment. That is carried out utilizing a protocol from the PTZ digital camera business often called VISCA over IP. Utilizing the Audio-Technica Digital Microphone Supervisor software program, you merely determine the digital camera IP deal with, then assign your digital camera zones to a selected preset recall on the digital camera. This can be a nice strategy to elevate the expertise in a easy small to medium assembly house with out breaking the financial institution.
For bigger and extra complicated areas the place a number of digital camera angles and video could be required, integration with third celebration {hardware} and software program continues to be a superb choice.
