Teledyne e2v HiRel Electronics has introduced the provision of a rad-tolerant, L- and S-band, low noise amplifier, mannequin TDLNA002093SE — this unit is right to be used in demanding, high-reliability house and radar functions the place low noise determine, minimal energy consumption, and small bundle footprint are vital to mission success.

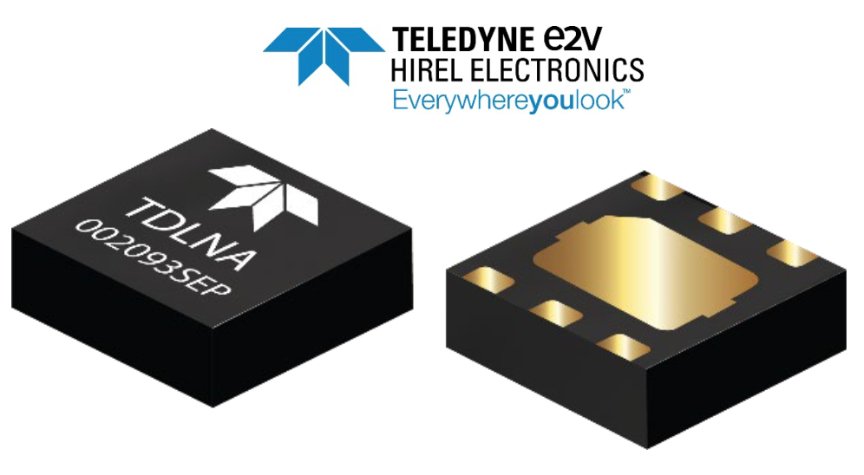

This new LNA, developed on 0.15 μm, InGaAs, pHEMT expertise, is on the market in a 6-pin, dual-flat no-lead (DFN) 1.5 mm x 1.5 mm x 0.8 mm plastic floor mount bundle and is on the market for quick cargo from the corporate’s DoD Trusted Facility.
The TDLNA002093SEP LNA leverages monolithic microwave built-in circuit (MMIC) design strategies that ship distinctive efficiency throughout each the L- and S-band communication channels. This amplifier delivers a achieve of 21 dB from 1 GHz to six GHz whereas sustaining a noise determine of lower than 0.37 dB and an output energy (P1dB) of 19 dBm.
The machine makes use of application-specific biasing and might be biased over a V DD vary of two.7 to five.0 volts and an IDDQ vary of 30 mA to 100 mA. A Class-Okay analysis equipment can also be obtainable for buyer analysis.
The TDLNA002093SEP is TID radiation tolerant to 100 krad (Si), making it a wonderful alternative for SATCOM techniques by rising the facility of radio indicators with minimal noise and sign distortion.
“Right this moment we’re releasing our lowest noise determine LNA optimized for house and radar functions. With a noise determine of lower than 0.37 dB coupled with ease of use from a constructive single-supply voltage, we consider this new product will allow system designers with a superior answer for each space-based communication, phased array radar, and communications system functions.” — Mont TaylorVice President and Enterprise Improvement Supervisor, Teledyne e2v HiRel
