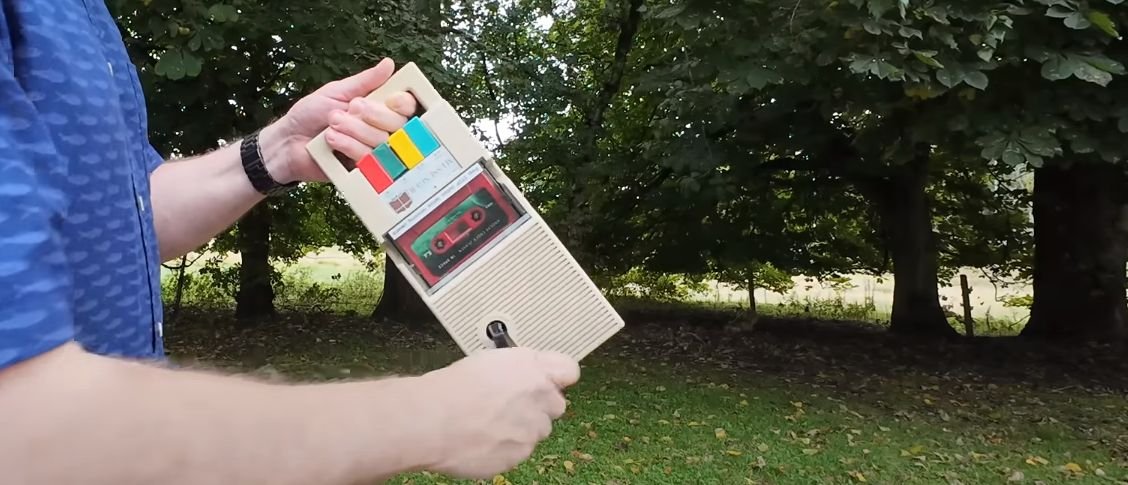

As helpful as electronics are, the necessity to have some supply of energy for them generally is a little bit of a problem, particularly for small, moveable gadgets. One of the vital low-tech however universally relevant supply is human mechanical energy, as demonstrated by the rugged Eighties-era Messenger II tape participant in a current [TechMoan] video. With out beating across the bush, that is certainly a tool created by an evangelical group (GRN) that missionaries would take with them to wherever their mission took them. Naturally this put the provision of energy from a wall outlet in query, particularly within the Eighties when this tape participant was produced.
Per the specs for the gadget, it makes use of about 1.2 Watt at full energy, with mentioned energy coming from a 6 VDC barrel jack enter (AC adapter or 4 D-cell battery pack), an AC adapter, or from the laborious to overlook crank deal with. This crank deal with connects to a set of gears that drive a generator through a belt, although with no buffering when it comes to a spring, capacitor or the like. On the identical specs web page for the gadget you will discover the service handbook (additionally on Archive.org), which incorporates full schematics. Within the service handbook on web page 19 you possibly can see the principle schematics, together with how the 6 VDC, transformer and generator inputs are dealt with.
Internally, the circuitry operates off a 5 V rail (after diode drop of the roughly 6 VDC enter), with playback and different operations disabled as soon as the enter voltage drops under a sure level. Which might occur when the batteries run low, or your cranking arm will get drained after at most a couple of minutes. Happily, the playback velocity is regulated in order that cranking velocity (above a sure RPM) is at all times adequate to get respectable sounding mono audio output.
Though the crank deal with is famous by [TechMoan] as being simple sufficient to deal with, it’s additionally extremely tiring so that you could solely use it for brief sections. For a correct doomsday gadget, it is likely to be advisable to make use of one thing like a pedal-based generator as one’s leg muscle tissues are significantly better at length trials, resembling pedaling by way of the whole lot of Queen’s Bohemian Rhapsody.
