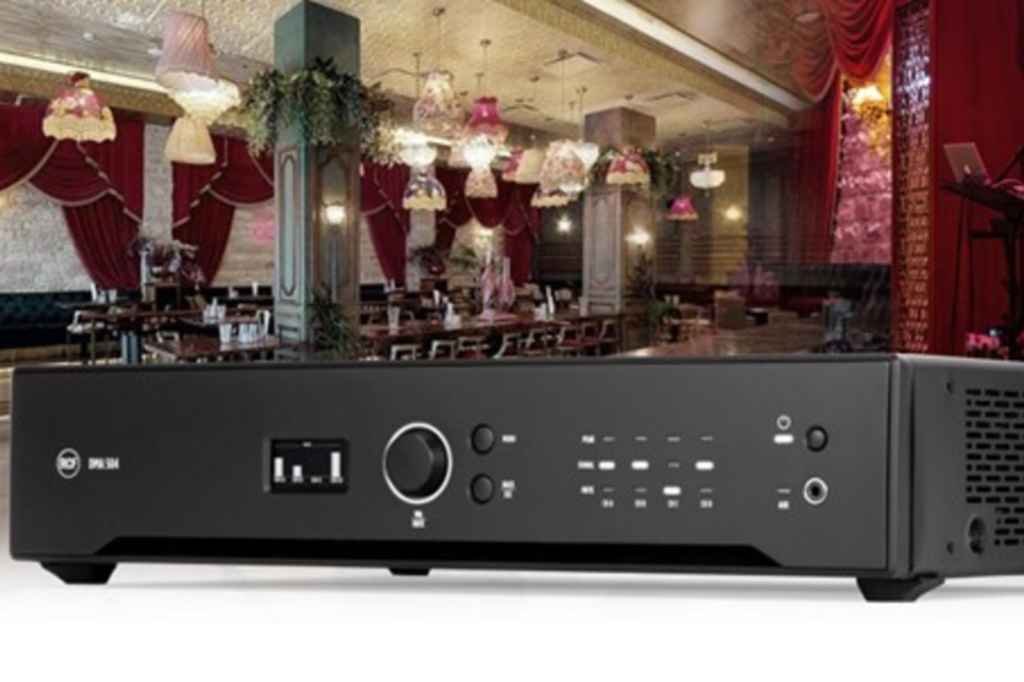

RCF has launched its DMA 504, a four-channel class-D matrix amplifier, offering 4 energy outputs of 500 Watts every.
Inputs and outputs could be managed when it comes to routing and equalisation, with an entire set of processing features, together with PEQ, FIR filters, bass enhancement, limiters, compressors, and environmental equalisation.
Presets for RCF audio system are additionally accessible on every channel for optimum acoustic efficiency.
The DMA 504 incorporates a two-rack unit dimension, appropriate for each desktop or rack set up. Every DMA 504 unit options two stereo line inputs on RCA connectors, and one mic+line balanced enter on detachable screw terminals.
A mono analogue line output can also be accessible, with a low go filter facility for the connection to an energetic subwoofer. A devoted paging enter on an RJ 45 connector is offered for connection of as much as 4 paging consoles (BM 404), interlocked on a single chain in addition to a wall mount distant management RC 401 which could be linked to every output channel to regulate the amount degree and to pick the specified output.
4 audio channels could be distributed to different models by an analogue audio BUS, combining a versatile and scalable multi-room structure.
Configuration can also be accessible by the entrance panel controls (with OLED show) or by way of RDNet administration software program.
