Cable producers typically take their lead from the hi-fi business on the subject of advertising. Phrases corresponding to oxygen-free, pores and skin impact, directionality and dielectric biasing are bandied about and, whereas there could also be a scientific foundation for a few of these claims, the concept is to make prospects suppose there’s all the time one thing higher on the market.
Not all cables are created equal, however components that have an effect on their sonic traits can normally be measured and quantified. As musicians, we’re primarily involved with instrument and speaker cables. So, what’s the distinction?
Speaker cable
Cables used to attach amplifiers to audio system are very completely different from the cables used to attach devices to amplifiers or pedals to pedals. Speaker cable is by far the only, and the 2 key necessities are enough energy dealing with and low resistance. The item is to switch all of the amp’s energy to the speaker with out losing any as warmth.
Hello-fi fanatics make all kinds of claims about speaker cable, and in case you’re listening to a midway first rate system, you’ll virtually actually hear a distinction in case you change from low-cost bell wire to simply about any business speaker cable. Maybe you’ll discover further readability, tighter bass or crisper stereo imaging. Or perhaps you received’t.
Both approach, guitar amplifiers and audio system usually are not high-fidelity units and the amp’s circuitry and the speaker collectively restrict high- and low-frequency response. Additionally they function in mono, so stereo imaging isn’t a consideration. Additionally keep in mind that hi-fi audio system could also be a number of metres away from the amplifier, however for guitar functions the cable size (and resistance) will probably be far shorter.
Contemplate the kind of speaker wire utilized in classic amplifiers. Vox used one thing akin to bell wire and Nineteen Sixties Fenders had the identical cloth-covered wire they used to hook up the amplifier circuitry. In Tweeds, you typically discover the identical brown plastic insulated wire that was used for the two-prong mains plugs.
If fancy speaker wire makes such a noticeable distinction over a 12-inch run, why hasn’t it turn into commonplace to retrofit classic amps with dearer speaker cable? And why isn’t there a raft of guitar speaker cable shoot-out demos on YouTube? The reply is that any variations, in the event that they even exist, are so miniscule that the majority of us can’t hear them.
Granted, you’ll generally see fancier speaker cable in boutique guitar combos, however we suspect that has extra to do with advertising psychology than audio efficiency. Speaker cable is normally bought by the metre, so it doesn’t price a lot to experiment. Attempt evaluating some with common stranded copper wire from a mains cable whilst you’re at it. Simply saying…
Should you’re doubtful as as to whether a cable is meant for audio system or devices, don’t use it for audio system
For single audio system you’ll want two lengths of wire: one for the optimistic and one for the unfavourable. Should you’re hooking up a number of audio system in parallel, take care to attach optimistic to optimistic and unfavourable to unfavourable to maintain all of them in part.
At one finish, the wires should be soldered to a jack plug to connect with the amplifier, and utilizing tremendous chunky hi-fi-style wire will make that very troublesome. For separate cabs, a jack plug is required at each ends, however in combos the speaker ends will should be soldered to spade connectors or immediately onto the speaker tags. The latter is preferable for reliability.
Speaker wires normally run parallel to at least one one other, or they could be twisted collectively. The wires might also be enclosed inside a layer of plastic insulation, which may make speaker and instrument cables seem similar. Should you’re doubtful as as to whether a cable is meant for audio system or devices, don’t use it for audio system. We’ll clarify why later.

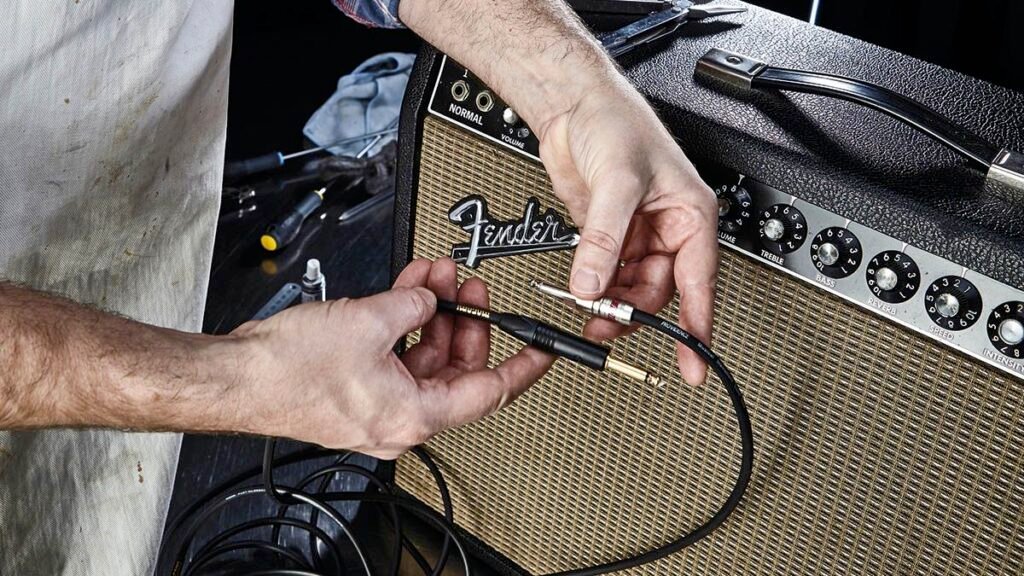

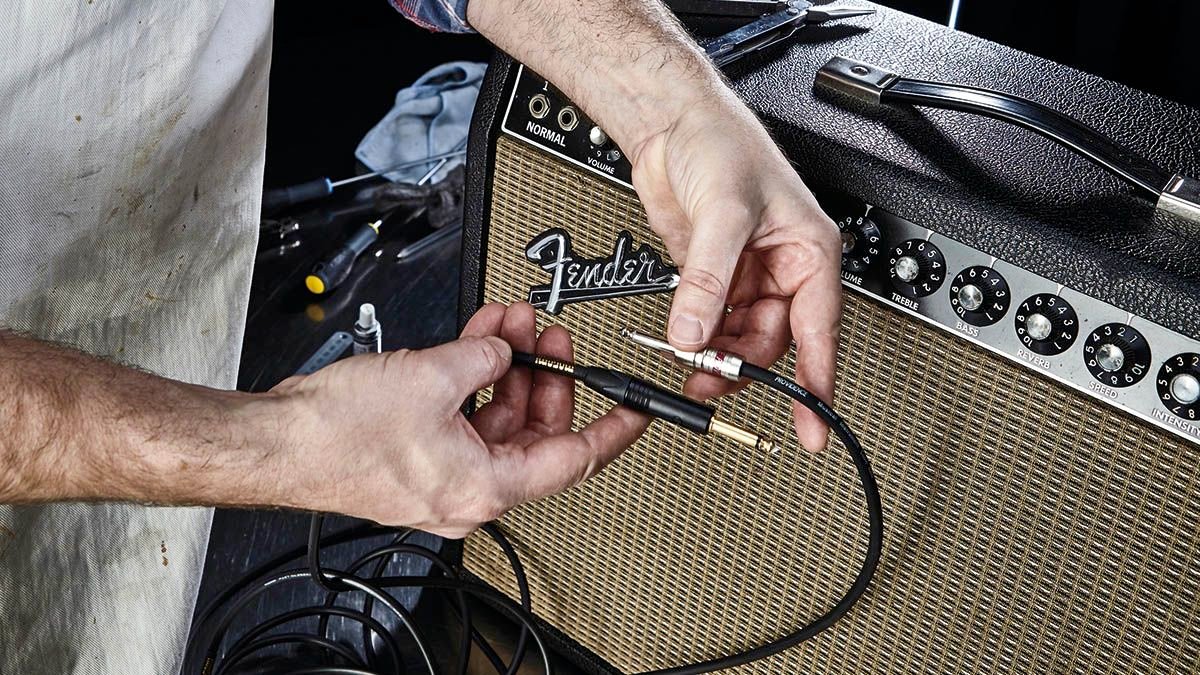

Instrument cable
Instrument cable is coaxial, which suggests there’s an insulated sign carrying centre wire enclosed inside an outer layer of braided wire. It’s similar to the braided pickup leads and hookup wires utilized in classic Gibson guitars, however instrument cable additionally has insulation defending the braided layer.
The braided layer is used to defend the sign wire from noise sources corresponding to pc displays, radio transmissions, fluorescent gentle interference and mains hum. The thought is to optimise signal-to-noise ratio; the optimistic sign wire is soldered to the tip connector of a jack plug and the unfavourable braided wire is linked to the sleeve.
Although it’s shielded, coaxial instrument cable can nonetheless be vulnerable to noise, and the longer a cable is, the larger potential it has for selecting up noise. Static cost may construct up when the braided layer rubs towards the insulation and leads to crackling noises when the cable is moved or dealt with.
To stop this, any high-quality instrument cable ought to have an electrostatic defend that kills the crackle by discharging static to floor. Should you’re allowed to audition a cable in a store, plug it into an amp and take a look at bending it by hand and slapping it on the ground to examine if it’s noisy. Whether it is, don’t purchase it as a result of the issue will turn into worse.
In electrical phrases, the sign degree generated by a passive pickup is tiny, so the sign carrying wire in an instrument cable doesn’t should be that substantial. As compared, the output degree generated by a guitar amplifier is big and speaker wires should be capable of deal with the facility.
Should you inadvertently use an instrument cable to attach your amp and speaker, the conductor might warmth up and current the amp with a better impedance. Extra highly effective amps might even trigger the plastic insulation to soften, and if the wires quick out, harm to the amplifier could be appreciable.
Misdirection
Some high-end instrument cables are described as ‘directional’, however that doesn’t imply the electrons solely move in a single path. As an alternative, one finish ought to all the time connect with the guitar and the opposite to the amp. Directional cables are made with dual-conductor microphone cable, somewhat than single-core coax cable.
Let’s say the conductors are colored black and white. On the amp finish, the white connects to the jack’s tip and the black wire is twisted along with the defend and soldered to the jack’s sleeve, aka floor. On the guitar finish, solely the white and black wires are linked to the jack and the defend is lower away so it ‘floats’.
‘Oriented’ could also be a extra correct time period than directional, and a few declare these cables are nice for tone and supply superior noise rejection. Pete Cornish cables are supposedly made this manner and are very extremely regarded. Directional cables are generally described as ‘semi-balanced’, which is absolutely only a meaningless advertising time period.
Wiry tone
Instrument cable can have a robust affect on guitar tone and the first trigger is cable capacitance. Should you place two electrical conductors in shut proximity and separate them with a non-conductive materials, you might have the makings of a capacitor.
Contemplating the best way that instrument cables are constructed, with an insulating layer separating the sign wire and braid, a coaxial cable is basically a tubular capacitor. Utilizing any instrument cable is tantamount to inserting a capacitor between the recent connection of your pickup and floor and that outcomes in treble roll-off.
Instrument cable capacitance is usually rated between 50pF and 150pF per metre, which equates to the brilliant capacitor values utilized in some amplifiers. Cable capacitance is proportional to size, so 4 metres of 50pF per metre cable will probably be nearer to 200pF.
As capacitance will increase, the treble roll-off encroaches additional down into the guitar’s frequency response. Consequently, longer cables will make your guitar tone darker. However is that essentially a foul factor?
In hi-fi phrases, the ‘excellent’ cable would switch 100 per cent of the sign with none change in frequency response and no added noise. In different phrases, sonic transparency. As we talked about earlier, guitars and amps usually are not hi-fi units and a few gamers want to make use of longer cables, however the purpose isn’t totally attributable to treble roll-off.
Pickups, potentiometers, tone capacitors and cables mix to make guitar circuits resistive, inductive and capacitive. Somewhat than a easy lack of treble above a sure frequency, the result’s a resonance peak round that roll-off frequency. The frequency vary at which the height happens, mixed with the width and depth of the height, has a big effect on the ensuing guitar tone.
Guitar electronics skilled Invoice Lawrence famous that utilizing a 300pF cable with a Stratocaster leads to a 6kHz resonance peak and glowing highs. The curly cables that Jimi Hendrix favored to make use of measured nearer to 2400pF, which subsequently shifts the resonance frequency nearer to 2kHz. Bump the amount up a bit and that offers you a midrange enhance.
Most fashionable high-end instrument cable is designed for low capacitance and unrestricted treble response, which we hear as readability and element. If that’s your choice, take a look at the producer’s specs and purchase low capacitance cable. However, whenever you’re taking pictures for particular classic tones, then low capacitance cable might undermine your efforts.
Naturally shiny guitars might sound higher to you with greater capacitance cable. Conversely, low-capacitance cable might enhance the readability and definition of guitars with darker-sounding humbuckers
Wish to experiment? Attempt soldering a bunch of capacitors onto a rotary change, join it throughout the optimistic and unfavourable tags of your output socket and hearken to the tone altering. Or take into account soldering a Neutrik NP2RX-Timbre plug at one finish.
Naturally shiny guitars might sound higher to you with greater capacitance cable. Conversely, low-capacitance cable might enhance the readability and definition of guitars with darker-sounding humbuckers.
Attempt utilizing a capacitive cable to refine overdrive and distortion tones, and low capacitance whenever you want sparkle and chime. Don’t focus solely on the treble response as a result of the midrange tone is arguably extra vital. As ever, it’s actually about mixing and matching gear to attain particular outcomes and choosing the proper cable for the job is one thing else you possibly can think about.
