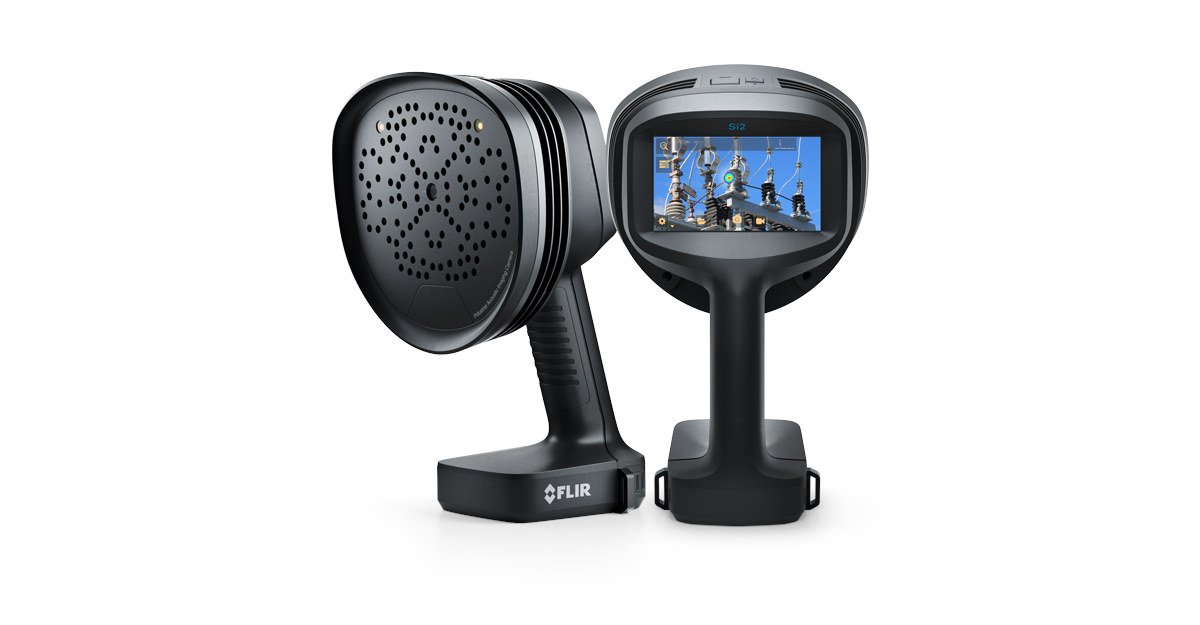

Teledyne FLIR is well-known for its thermal imaging infrared cameras, however the FLIR Si2 is totally different as as an alternative of measuring temperature, the acoustic imaging digital camera is supplied with 124 delicate microphones to detect leaks, electrical discharge, and mechanical faults as much as 200 meters away.
The acoustic imaging digital camera additionally comes with a 5-inch show and a 12MP RGB digital camera. It’s obtainable in three variants: the FLIR Si2-PD for partial discharge detection, the Si2-LD for air leak and mechanical fault detection, and the Si2 Professional able to dealing with each.
FLIR Si2 specs:
- Show – 5-inch resistive touchscreen TFT PCB with 1280 × 720 decision
- Measurement and evaluation
- FLIR Si2-LD
- Detection threshold
- 20 kHz: -7 dB SPL
- 35 kHz: 4 dB SPL
- 50 kHz: 10 dB SPL
- 80 kHz: 36 dB SPL
- 100 kHz: 51 dB SPL
- Supported gases: Compressed air, hydrogen, CO2, methane, pure fuel, helium, argon, ammonia
- Different acoustic evaluation modes: Mechanical fault detection
- Detection threshold
- FLIR Si2-LD
-
- FLIR Si2-PD – Severity Evaluation – Automated AI-based severity evaluation together with really useful actions onboard digital camera
- Bandwidth – 2 kHz to 130 kHz
- Vary – 0.3 m to 200 m
- Leak Charge – 0.0032 l/min from 2.5 m, 0.0044 l/min from 6 m
- Imaging & Optical
- Subject of view (FOV) – 75° diagonal
- Video Body Charge – Digicam: 60 fps / Acoustic picture: 30 fps / Display screen: 70 fps
- Video Picture Decision – 1280 × 720
- Zoom – 8x Digital zoom
- Host interfaces
- Twin-band 802.11.b/g/n/ac WiFi 5
- USB port
- Misc – LEDs: three modes off, regular and vivid; energy button
- Energy
- Nominal Enter Voltage – 12 V DC
- Max enter – 17 V DC, 3.3 A (restricted)
- Battery
- Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
- Max output: 16.8 V DC, 5 A
- Dimensions – 85 mm × 77 mm
- Weight – 250 grams
- Battery Charger – Enter: 19-26 V DC, 2.8 A; Max output: 17.4 V DC, 4.8 A
- Working And Storage Humidity – 0-90% really useful
- Temperature Vary
- Working – -10°C to 50°C
- Storage – -20°C to 70°C
- Safety Class – IP54
We’re not informed an excessive amount of in regards to the software program, besides the digital camera helps automated Over The Air (OTA) firmware updates over WiFi or USB. The {hardware} specs for every mannequin look to be precisely the identical, so that they most likely solely differ by their firmware.
Most individuals received’t get such acoustic imaging cameras to detect water or fuel leaks of their dwelling any time quickly, as a result of the FLIR Si2 is designed and priced for the commercial market with the FLIR Si2-LD beginning at $18,000, the Si2-PD goes for $19,000m and the Si2 Professional promoting for a cool $25,000. Extra particulars together with buy hyperlinks could also be discovered on the product web page.
By way of Hackster.io
